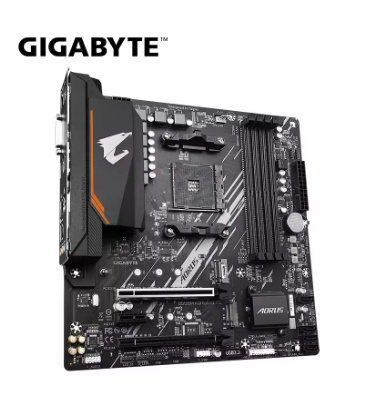

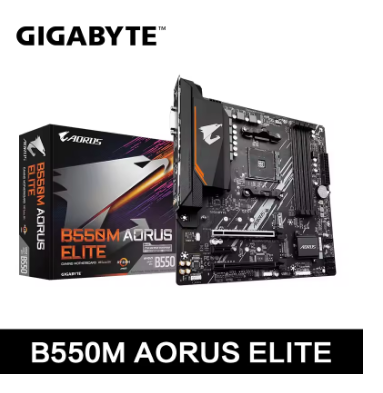

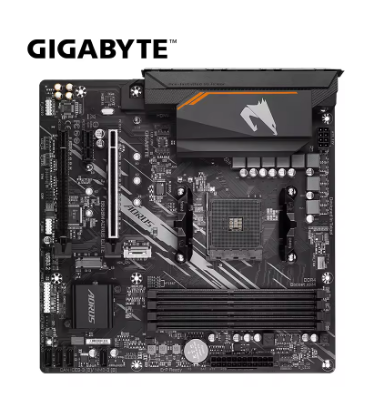

GIGABYTE New B550M AORUS ELITE Motherboard Micro-ATX Socket AM4 For Ryzen 5000 4000 3000 Series CPU Dual Channel DDR4 SATA3 M.2

Featured Focus

AMD B550 AORUS motherboard features digital power delivery, PCIe 4.0 graphics card slots, 2 M.2 SSD slots, Gigabit high-speed LAN card, Smart Fan 5 with Smart Fan technology, RGB FUSION 2.0, Q-Flash Plus

• Supports AMD Ryzen 5000 series/ Ryzen 5000 G-series/ Ryzen 4000 G-series/Ryzen 3000 series and 3000G-series processors

• Four integrated memory slots support dual-channel ECC/Non-ECC DDR4 memory

• 5+3 phase power supply with low resistance transistors

• PCI-E 4.0 alloy armor graphics card slot

• High-speed NVMe PCIe 4.0/3.0 M.2 SSD slot

• High-quality audio special capacitor + independent audio block isolation line

• Gigabit high-speed network card is equipped with intelligent management software

• The rear window interface supports HDMI & DVI

• RGB FUSION 2.0 LIGHTING SYSTEM WITH DIGITAL LED SUPPORT AND INTEGRATED PROGRAMMABLE RGB LED STRIP HEADERS

• Smart Fan 5 technology with integrated multi-point temperature measurement and hybrid fan header with FAN STOP support

• Q-Flash Plus makes it easy to update the BIOS without installing CPU, memory, or graphics card

• The anti-sulfur resistor design extends the service life

B550M AORUS ELITE --- Product Specifications :

• Supports Processor(CPU) : Supports AMD Ryzen 5000 series/ Ryzen 5000 G-series/ Ryzen 4000 G-series/Ryzen 3000 • series and 3000G-series processors

• Processor slot : AMD Socket AM4

• Chipset : AMD B550 chipset

• Graphics card slot * : 1*PCI-E' 4.0/3.0 x16

• Display interface * : HDMI, DVI-D

• Memory type : Dual channel DDR4

• Memory slots : 4 memory slots

• Expansion slots : 1*PCI-E' 3.0x4 +1*PCI-E' 3.0x1

• Hard drive interface * : 4*SATA 3.0/2*M.2 for SSD

• SATA RAID : RAID 0, 1, 10

• Network : . Integrated Realtek GbE network chip (1 Gbps/100 Mbps)®

• USB : 6*USB 3.2 Gen 1+6*USB 2.0

• Board type (mm) : Micro ATX (244x244)

PCle® 4.0 for everyone --- The AMD B550 chipset makes PCle 4.0 possible for anyone who wants higher performance, bandwidth and speed. Ready for 3rd Gen AMD Rvzen" processors and bevond.

*** AMD Ryzen 5000,4000,3000 Series Compatible,Not Compatible with AMD Ryzen 5 3400G & AMD Ryzen 3 3200G5+3 Phases Pure Digital VRM Solution with Low Ros(on) MOSFETs --- GIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen" CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

PCle 4.0* Hardware Design

• PCle 4.0 Slot --- PCle 4.0 x16 slot with faster bandwidth and lower impedance.

• M.2 PCle 4.0 Slot --- M.2 PCle 4.0 x4 slot with Lower impedance.Realtek GbE LAN with Bandwidth Management --- The Industry's Leading LAN Static-Electricity & Surge Protection

• GiGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.Smart Fan 5 --- With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

• 5 Temperature Sensors

• 3 Fan Pin Headers

• All Fan Pin Headers Upgraded to Hybrid Fan Headers

• Interoperable Fans and Sensors

• Intuitive Ul for Fan Control

Hybrid Fan Pin Header

• Closed Loop Watercooling

• CPU Fan

• System Fan

• Watercooling Pump

• Water Flow Sensor

Q-Flash Plus --- With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS.l Just download and save a new BIOS file (rename to gigabyte bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!

• Step 1. --- Plug 24pin & Bpin power supply cable on motherboard

• Step 2. --- Downioad and unzin motbotoned comneneced Dioe flo and roname to "nioabvte bin" save to USB fashdrivo and plug USB fashdrive into Q-Flash Pus USB port

• Step 3. --- Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.Colorful Magic --- RGB FUSION 2.0

• With the new generation of RGB Fusion 2.0 software, users can change different LED colors and display modes with one cick. Users can also set the LEDs to sync with the music being played, or set to automatically change the color of the LEDs based on processor temperature, load, etc, allowing users to control the health of their computers at all times. FOR PROFESSIONALS WHO ARE TRULY OBSESSED WITH UGHTING TUNING, RGB FUSION GIVES USERS CONTROL OVER INDIVIDUAL AREAS AND THE ABILITY TO PERSONALIZE THEM TO THE LOOK THEY WANT.

• GIGABYTE motherboards offer full support for up to 300 programmable LEDs in a single interface, as well as 5 volt digital programmable LED strip voltages, RGB Fusion 2.0 and dozens of different programmable digital LED modes for speed and transitions.

*** Digital programmable strips and RGB external strips are not induded in the motherboard.

*** Support For External LED Light Strips

RGB Fusion 2.0 software --- RGB Fusion 20 provides a better lighting adjustment solution, allowing users to easily customize the lighting effects for all compatible devices. From motherboards and graphics cards to other peripherals, users can personalize their gaming consoles to show off their personal style and share their profiles to showcase their carefully configured lighting. In addition, the newly added gaming mode allows the computer lighting effects to interact with select games, giving you a more immersive gaming experience

RGB Fusion APP --- The sparkling light display is just one of the ways to modify a computer, and if it can evolve into a work of art, it will become the envy of everyone. With the GiGABYTE RGB Fusion app, users can monitor and adjust the motherboard's lighting changes. The GiGABYTE RGB Fusion app makes it easier for users to control their computer's lighting changes from their handheld devices with the same precision as they can control computer program adjustments with the same precision as a keyboard or mouse.

NOTICE

*The words HDMI, HDMI High Definition Multimedia Interface, HDMI trade dress, and HDMI logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*The specifications, pictures, and other information of the above products are for reference only. If there is any inconsistency with the actual product, the actual product shall prevail. Gigabyte Technology reserves the right to make modifications at * time. Gigabyte Technology shall not be liable for any losses caused by *'s use of the above data.

*The performance indicators of this product are based on the theoretical values proposed by various chip manufacturers or official interface organizations. The actual performance may vary depending on specifications and equipment.

*The trademarks and enterprise identification diagrams used in this article are the property of their legitimate owners.

*Based on the basic architecture of PC, some memory space needs to be reserved for system purposes, so the detected memory size will be smaller than in reality.

FAQ :

Is it brand new?

Yes, brand new
